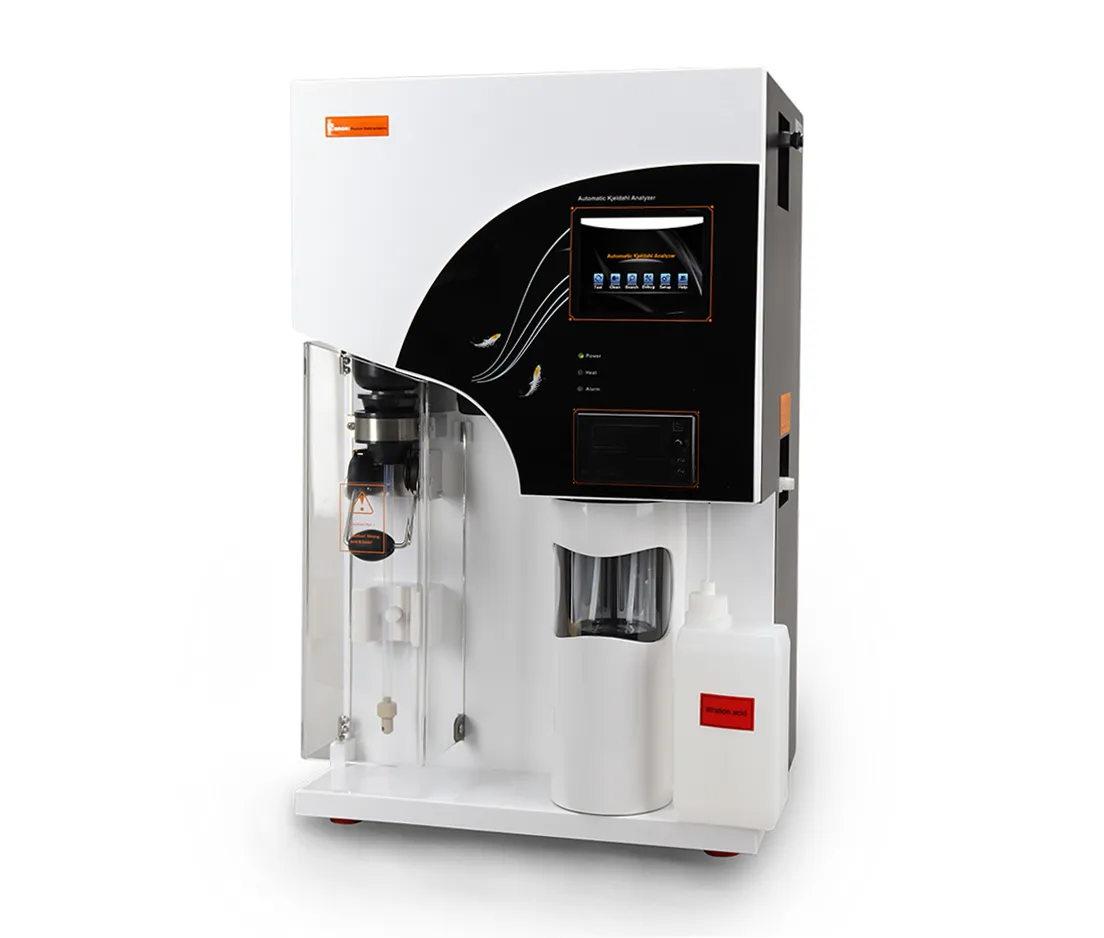

Kjeldahl Distillation K1100F Hanon

Kjeldahl Distillation K1100F Hanon Automatic System is an automatic device integrating distillation and titration functions it is designed based on the classic Kjeldahl nitrogen determination method. It’s equipped with the latest core control system, powerful automation, and high-quality components; it can easily achieve automatic waste discharge and cleaning of digestion tubes and titration cups, control steam supply, and real-time detection of condensation temperature. A high-accuracy charging pump and titration system ensure test results accuracy, and multiple fluid level detection ensures a smooth test process.

Description

TKjeldahl Distillation K1100F Hanon is an automatic device integrating distillation and titration functions it is designed based on the classic Kjeldahl nitrogen determination method. It’s equipped with the latest core control system, powerful automation, and high-quality components; it can easily achieve automatic waste discharge and cleaning of digestion tubes and titration cups, control steam supply, and real-time detection of condensation temperature. A high-accuracy charging pump and titration system ensure test results accuracy, and multiple fluid level detection ensures a smooth test process.

Kjeldahl Distillation K1100F Hanon
Kjeldahl Distillation K1100F Hanon Automatic System is an automatic device integrating distillation and titration functions.

Technical Parameter

Measuring range 0.1mg ~240mg N
Analysis time 5~10min/sample
Reproducibility Average value relative error ±0.5%
Recovery ≧99.5%
Burette volume 1.0μL/step
Sample capacity solid≦5g/sample, liquid≦20mL/sample
Water consumption in the distillation process 1.5L/min
Data storage capacity 1800 groups
Power supply 220VAC±10%, 50Hz
Power 2Kw
Net weight 38Kg
Dimensions 455mm×391mm×730mm

Product Details Kjeldahl Distillation K1100F Hanon

Characteristics

Automatic distillation, titration, calculation, printing, drain and cleaning function, safety, and time-saving.

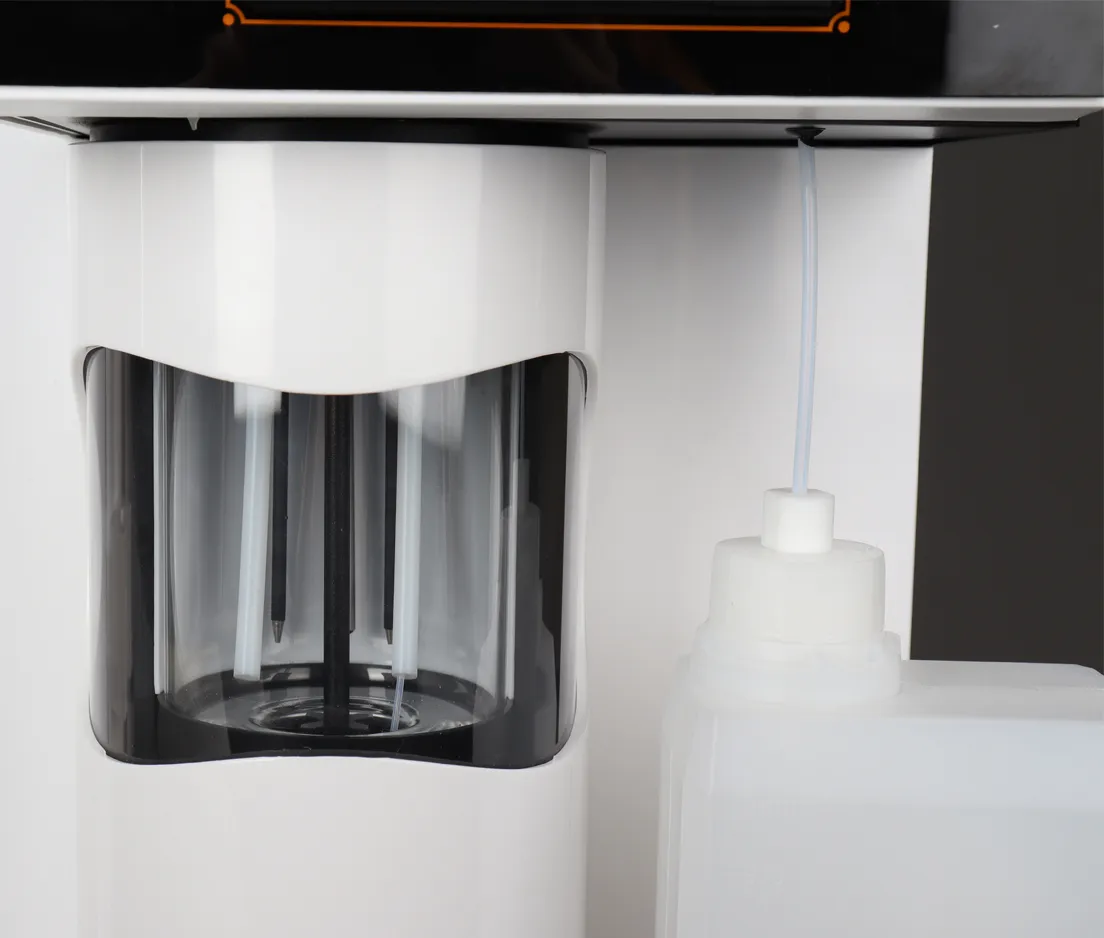

Visibletitration cup design gives the operator real-time control of the whole test process.

Steam flow is controllable, satisfying different test requirements.

Regent tank enjoys fluid absence warning function, ensuring smooth test going.

High-precision charging pump and titration system ensure test results accuracy.

The large LCD touch screen gives visual operation and enables user to have a good command of it.

USB or RS485 interface is optional for PC connection.

Distilled liquid temperature is detected in real-time. Emergency stop against temp anomaly.

The double distillation model meets different experiments, to retard the speed of acid-base reaction.

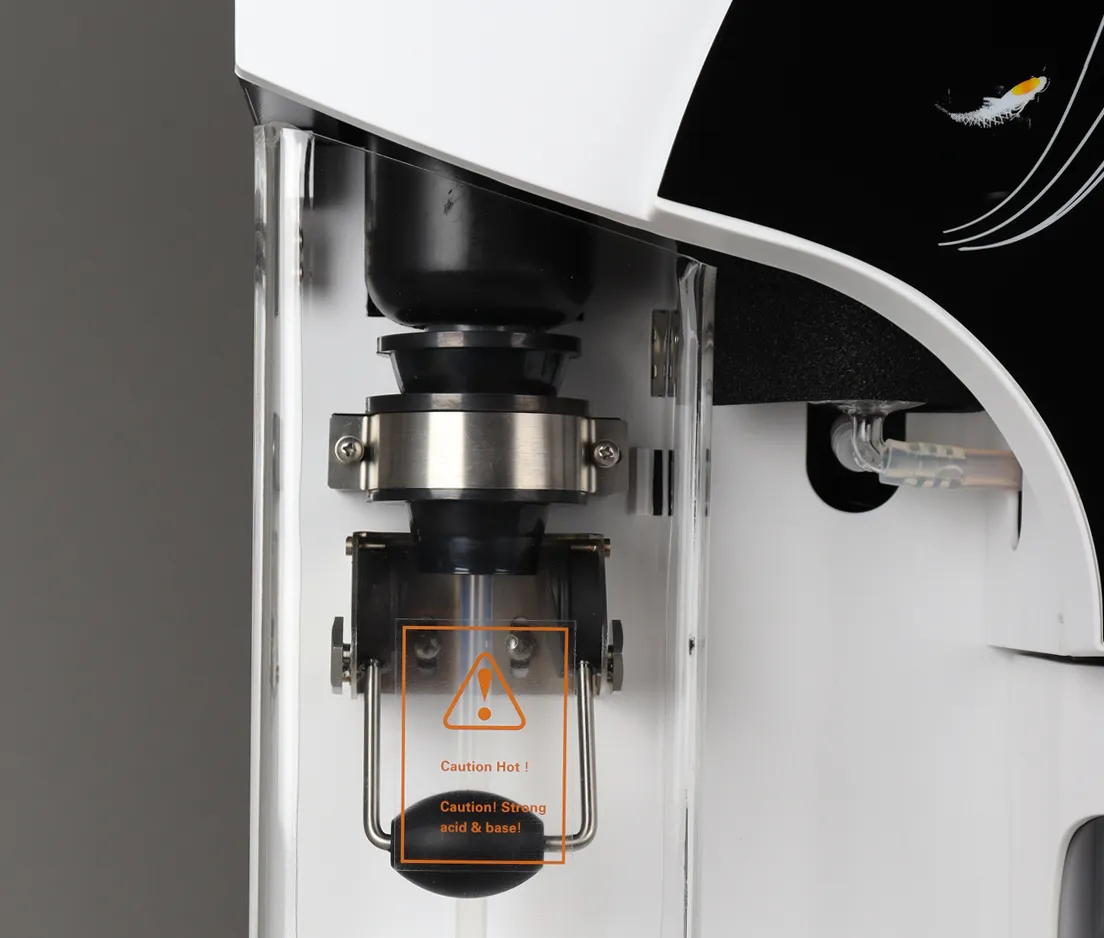

The digestion tube’s fast drain function is used to prevent the operator touch distilled hot reagents, protecting operators.

The printer is built in.

Complete microcomputer control

Automatic completion of distillation, titration, calculation, printing, waste discharge, and multiple protections with automatic self-detection, so that hints of condensed water shortage, displacement of safety door and digestion tube, and so on ca be known.

Large LCD Touch Screen Panel

The large LCD touchscreen gives visual operation and abundant information, enabling user to have a good command of it.



Kjeldahl Distillation K1100F Hanon

Complete compatible design

Compatible with congeneric products perfectly



Performance advantage Kjeldahl Distillation K1100F Hanon

Compatible with φ 42mm digestion tube

The titration simultaneous with distillation enhances the efficiency rapidly.

User-friendly design, color touch screen, easy for operating

Faster ARM system, faster operating rate

Digestor model SH220F and SH420F are matching K1100F, with φmm digestion tube
