Description

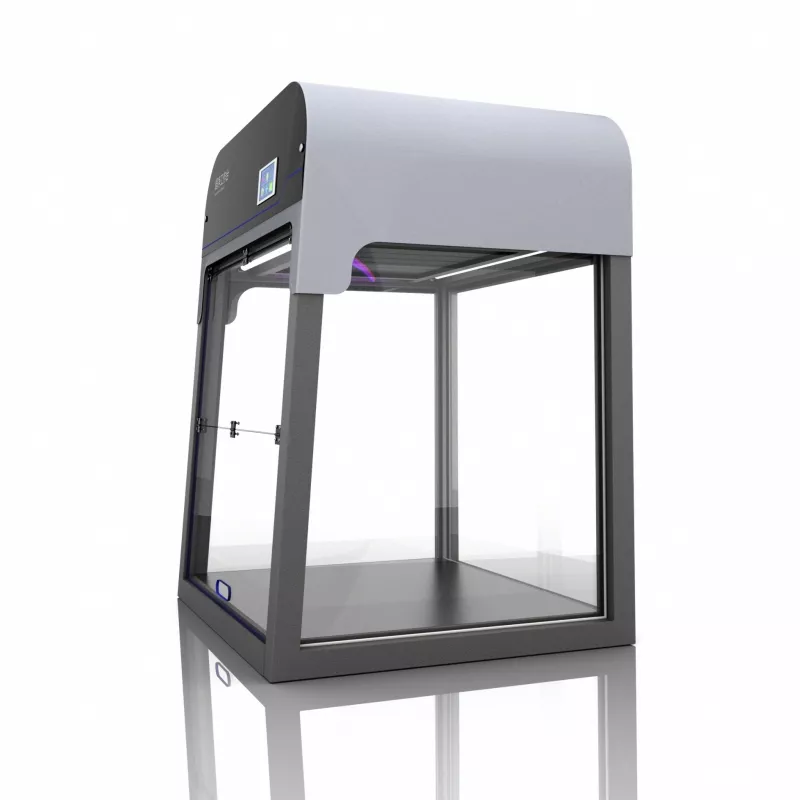

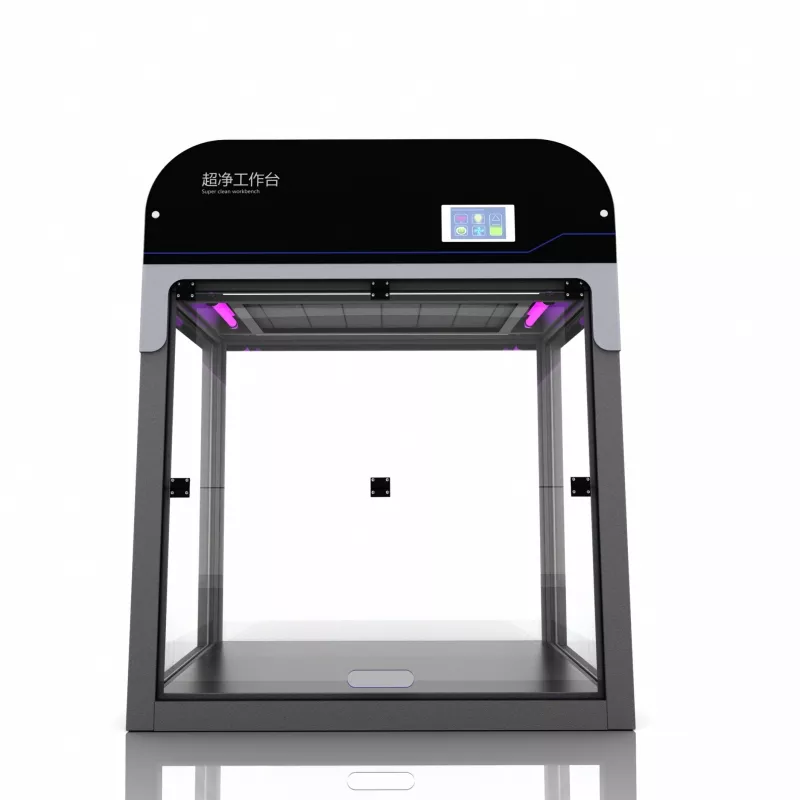

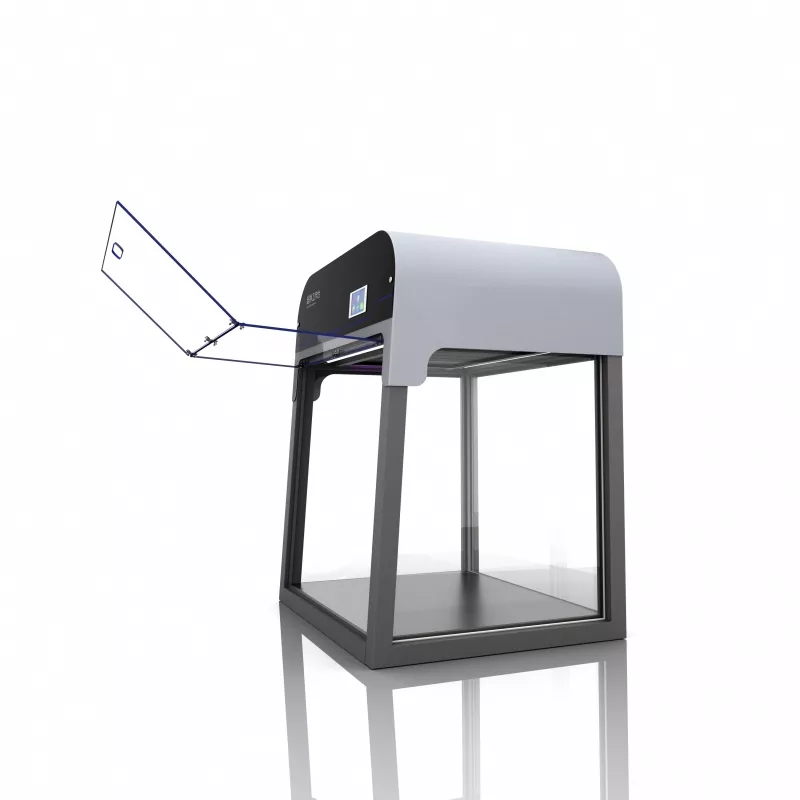

Desktop Laminar Airflow Xunling also called a clean bench, consists of a filter pad, a fan, and a HEPA (High-Efficiency Particulates Air) filter. To remove air particle contamination, such as fungi, bacteria, dust, etc, dust air particles must pass through a HEPA filter. Now the sterile air flows into the working area where you can do all your experiments without risk of contamination.
Xunling produces two types of hoods: Vertical Airflow Hoods and Horizontal Airflow Hoods. In a vertical flow, the air moves from the top of the working area to the bottom and leaves the working area through holes in the base. While if you use a flow hood with horizontal airflow the air moves from the back of the working area to the front.
The downward or vertical airflow blankets the work surface with HEPA-filtered clean air, and maintains a positive pressure environment within the work zone, keeping your products and processes safe from airborne contaminates. A timer for UV light and interlock features make it an ideal work zone with minimum ISO 5 ( Class 100) conditions.
Technical Parameter Desktop Laminar Airflow Xunling
| Model | CB790S | CB790T | CB1190S | CB1190T |
| External Size (mm)
Width*Depth*Height |
890*740*850 | 900*750*1100 | 1290*740*850 | 1290*740*1100 |
| Workspace Size (mm)
Width*Depth*Height |
790*640*450 | 800*650*700 | 1190*640*450 | 1190*640*700 |
| Max Purified Air Volume | 5.6 m³/min | 11.2m³/min | ||
| Filter Efficiency | ＞99.997℅ at 0.3 μm (micron） | |||
| Cleanliness level | ISO Class 5 or FS209E 100 | |||
| Airflow Rate & Blower speed | Adjustable | |||
HEPA Clean Bench Standard Features
- High-Efficiency Particulate Air (HEPA) filter rated 99.997% efficient at 0.3 microns.
- LCD control panel with soft touch switching for lights, fan, airflow speed, and UV timer.
- Partial recirculation feature to reduce turbulent airflow at the rear of the work zone area.
- LED and germicidal UV light, UV light is interlocked with a sash, LED light, and fan.
- Cold-rolled steel construction for an exterior shell with a durable, anti-bacterial powder coat finish.
- Stainless steel work surface, dished profile to contain spills.
