Description
Laboratory Freeze Dryer
Laboratory freeze dryer. The SCIENTZ-N series of experimental freeze dryers are specialized products designed for laboratory users working with small batches of samples. Adopting an imported compressor with stable performance and powerful function, it can provide a highly automated high-quality freeze-drying environment (conventional no-load -56℃, optional -80℃ compressor), which is the ideal choice for small and medium-sized laboratories to complete freeze-drying process experiments.

Application Areas Laboratory Freeze Dryer
2. Food: Freeze-dried vegetables, freeze-dried fruits, freeze-dried coffee, freeze-dried tea, freeze-dried spices, freeze-dried meats, freeze-dried candies, freeze-dried veggies, freeze-dried dog food, freeze-dried pet snacks.
3. Centers for Disease Control and Prevention (CDC): Freeze-drying of drugs, freeze-drying of nucleic acids, proteins, serum samples, freeze-drying and preservation of microorganisms and viruses, extraction and drying of proteins, freeze-drying of vaccines and anticancer drugs, research on synthesis of chemical drugs, development of powdered injections, extraction of components of traditional Chinese medicines, freeze-drying of strains of bacteria, viruses, etc., and pre-processing of samples for physicochemical laboratories.
4. Environments: Freeze-drying of soil and sludge samples.
5. Biopharmaceutical: Vaccine powders, antibiotics, antitoxins, diagnostic reagents, interferons, orally disintegrating tablets, serum proteins and plasma, enzymes, coenzymes, disintegrating tablets for ophthalmic use, skin tissues, extraction of Traditional Chinese Medicine Ingredients, Chemical Drug Synthesis Research, etc.
Technical Parameter
SCIENTZ-10N Laboratory Freeze Dryer Series:
Model |
SCIENTZ-10N/e
|
SCIENTZ-10N/d
|
SCIENTZ-10N/c
|
SCIENTZ-10N/b
|
SCIENTZ-10N/A
|
pic |
![]() |
![]() |
![]() |
![]() |
![]() |
Type
|
T-Hanger Type
|

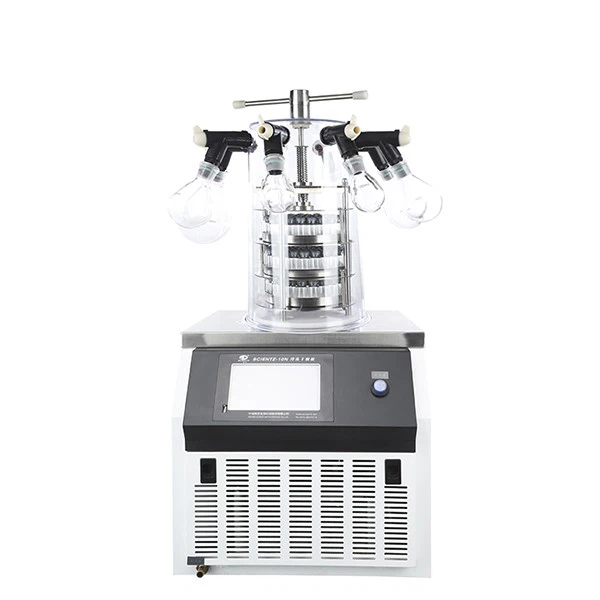

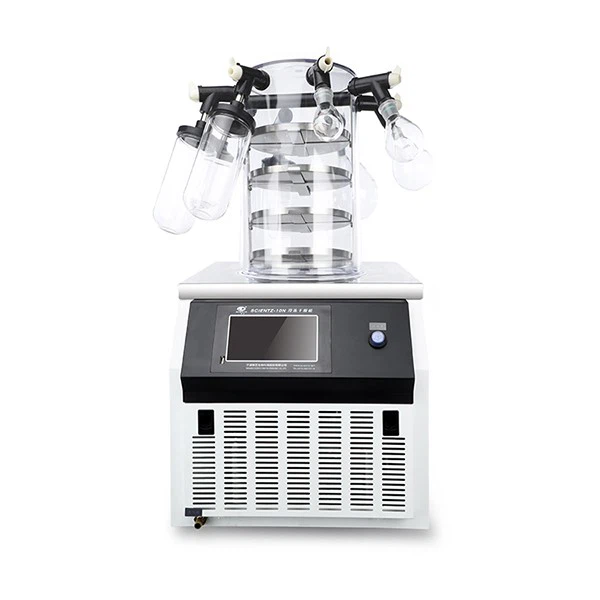

Gland Multi-manifold type
|
Common manifold type
|

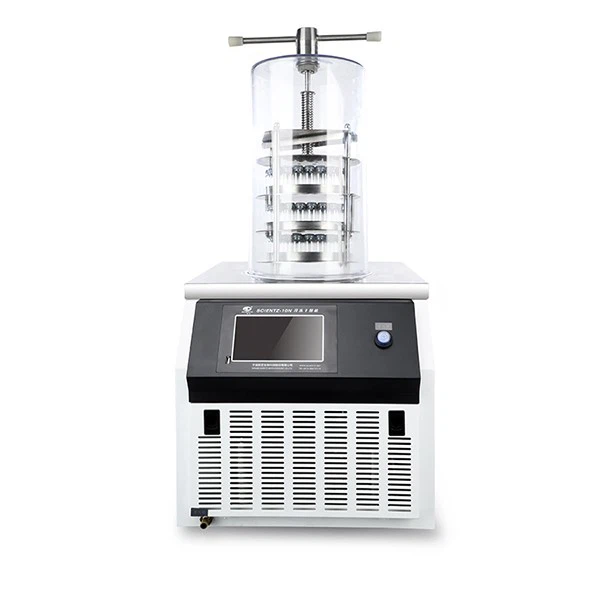

Pressure cap type
|

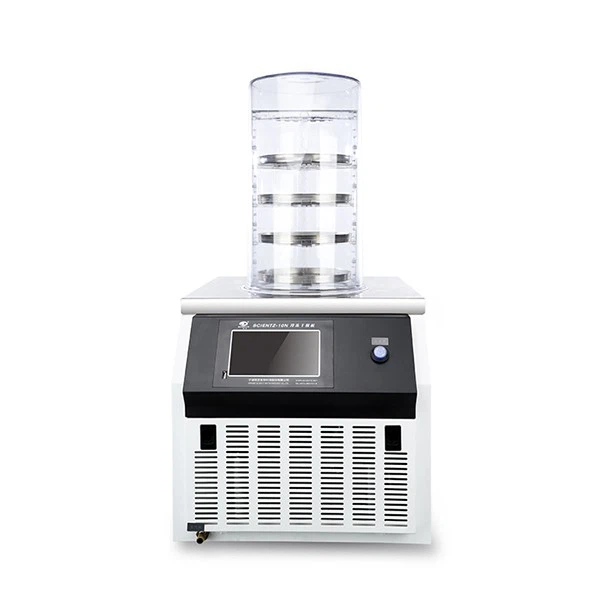

General type
|
Dryer area(㎡ )
|
/ | 0.08 | 0.12 | 0.08 | 0.12 |
Ability to capture water(Kg/batch) | 3 | 3 | 3 | 3 | 3 |
Schering bottle quantity
|
/ | Φ12mm:560
Φ16mm:285 Φ22mm:165 |
Φ12mm:920
Φ16mm:480 Φ22mm:260 |
Φ12mm:560
Φ16mm:285 Φ22mm:165 |
Φ12mm:920
Φ16mm:480 Φ22mm:260 |
Eggplant shape bottle
|
/ | 8 | 8 | / | / |
Ampoule Interface | 24 | / | / | / | / |
Plate load capacity (L)
|
/ | 1 | 1.5 | 1 | 1.5 |
Plate size (mm)
|
/ | Φ180 | Φ200 | Φ180 | Φ200 |
Plate distance (mm)
|
/ | 70 | 70 | 70 | 70 |
Tray quantity(pcs)
|
/ | 3 | 4 | 3 | 4 |
Cold chamber
size(mm)
|
Φ250×150
|
Φ250×150
|
Φ250×150
|
Φ250×150
|
Φ250×150
|
The cold trap is the lowest
temperature(°C)
|
≤-56 (No load)
|
≤-56 (No load)
|
≤-56 (No load)
|
≤-56 (No load)
|
≤-56 (No load)
|
Ultimate vacuum(Pa)
|
≤5 (No load)
|
≤5 (No load)
|
≤5 (No load)
|
≤5 (No load)
|
≤5 (No load)
|
Power Kw(220V50Hz)
|
0.95
|
0.95
|
0.95
|
0.95
|
0.95
|
Amibient
temperature(
°C)
|
≤25
|
≤25
|
≤25
|
≤25
|
≤25
|
Size dimension(mm)
|
L590×W460×H450
+440 |
L590×W460×H450
+440 |
L590×W460×H450
+440 |
L590×W460×H450
+440 |
L590×W460×H450
+440 |
